Lampa faoi stiúir déine ard
{30-280 w Ard-déine faoi stiúir Múnla Príobháideach Lampppatent, Éifeachtúlacht Alhigh Comhtháite Comhtháite, 200LM/W Ar Fáil Frith-Dhílseacht PC Lionsa T2S/T2M/T3mTe Leibhéal Cosanta IP66/IK08.SNAP FOUNTUTANT, Disassembly Uirlis. Painéal Gloine, Seasta gan Glue.Additional RIALÚ ROGHNÚCHÁIN TEAGHLAIGH: Zigbee, PLC, NB-IotdayLight Switch: Is féidir fótagraf a ionchorprú.
- Réamhrá Táirgí
{30-280 w Lampa sráide faoi stiúir ard -déine faoi stiúir
Múnla Príobháideach Paitinne, AL Comhtháite Comhtháite AL, Ard-Éifeachtúlacht, 200LM/W ar Fáil, Lionsa PC Frith-Ghlainne Gairmiúil T2S/T2M/T3M
Is é an leibhéal cosanta IP66/IK08. Snap gléasta, painéal gloine saor ó uirlis saor in aisce.
Gnéithe roghnacha breise
Rialú Soilsithe: Zigbee, PLC, NB-IoT
Lasc solas an lae: Is féidir fótachóip a ionchorprú.
Dimming: Dimming roghnach ar fáil ar iarratas.

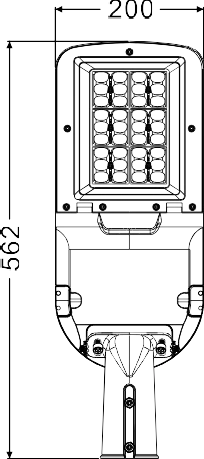

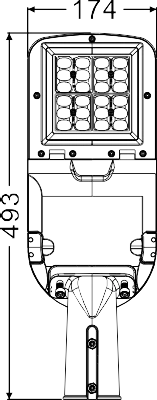

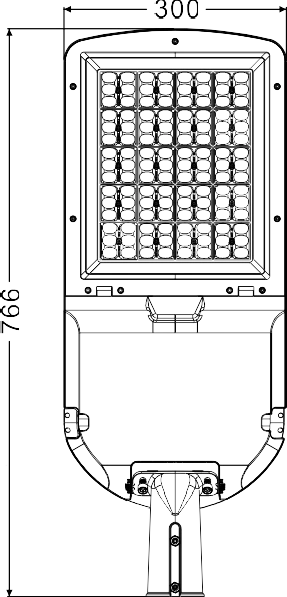

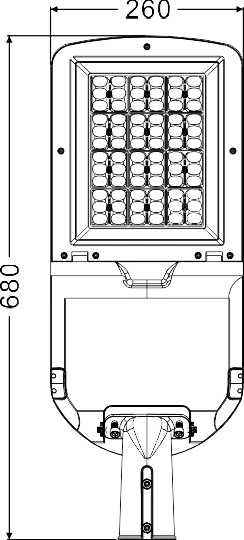

Toisí:
30W-60W 70W-80W 90W-120W
130W-180W 190W-280W
Paraiméadar Teicniúil:
|
Mír Mír |
RL-S7B -50 w w |
RL-S7B -75 w w |
RL-S7B -100 w w |
RL-S7B -150 w w |
RL-S7B -200 w w |
RL-S7B -250 w w |
|
|
Méid lampa(mm) |
493*174*108 |
562*200*108 |
607*240*108 |
680*260*108 |
766*300*108 |
766*300*108 |
|
|
Ábhar |
ADC12 |
||||||
|
Voltas |
AC100V -240 v 50/60Hz |
||||||
|
Cumhacht |
30-60W |
70-80W |
90-120W |
130-180W |
190-280W |
190-280W |
|
|
Cineál LED |
Osram/Lumileds/Tiandian 5050/3030 |
||||||
|
Cainníocht faoi stiúir |
5050 (le {6- i {-1 lionsa) |
24pcs |
36pcs |
54pcs |
72pcs |
120pcs |
120pcs |
|
5050 (le {8- i {-1 lionsa) |
32pcs |
48pcs |
72pcs |
96pcs |
160pcs |
160pcs |
|
|
5050 (le {10- i {-1 lionsa) |
40pcs |
60pcs |
90pcs |
120pcs |
200pcs |
200pcs |
|
|
3030 (le {16- i {-1 lionsa) |
64pcs |
96pcs |
144pcs |
192pcs |
320pcs |
320pcs |
|
|
3030 (le {24- i {-1 lionsa) |
96pcs |
144pcs |
216pcs |
288pcs |
480pcs |
480pcs |
|
|
Flosc luminous |
5050 (le {6- i {-1 lionsa) |
4800-9600 lm |
11200-12800 lm |
14400-19200 lm |
20800-28800 lm |
30400-44800 lm |
30400-44800 lm |
|
5050 (le {8- i {-1 lionsa) |
5400-10800 lm |
12600-14400 lm |
16200-21600 lm |
23400-32400 lm |
34200-50400 lm |
34200-50400 lm |
|
|
5050 (le {10- i {-1 lionsa) |
6000-12000 lm |
14000-16000 lm |
18000-24000 lm |
26000-36000 lm |
38000-56000 lm |
38000-56000 lm |
|
|
3030 (le {16- i {-1 lionsa) |
4200-8400 lm |
9800-11200 lm |
12600-16800 lm |
18200-25200 lm |
26600-39200 lm |
26600-39200 lm |
|
|
3030 (le {24- i {-1 lionsa) |
4800-9600 lm |
11200-12800 lm |
14400-19200 lm |
20800-28800 lm |
30400-44800 lm |
30400-44800 lm |
|
|
Teocht dath |
Bán te |
3000-4000K |
|||||
|
Bán neodrach |
4000-5000K |
||||||
|
Bán fionnuar |
5000-6000K |
||||||
|
Uillinn bhíoma |
{6- i -1 lionsa |
T2S/T2M/T3M |
|||||
|
{8- i -1 lionsa |
T2S/T2M/T3M |
||||||
|
{10- i -1 lionsa |
T2S/T2M/T3M |
||||||
|
{16- i -1 lionsa |
T2S/T2M/T3M |
||||||
|
{24- i -1 lionsa |
T2S/T2M/T3M |
||||||
|
Innéacs rindreála dathanna (CRI) |
Ra>70 |
||||||
|
Réiteach Soláthair Cumhachta |
>90% |
||||||
|
E -enitency luminous faoi stiúir |
5050 (le {6- i {-1 lionsa) |
160lm/w |
|||||
|
5050 (le {8- i {-1 lionsa) |
180lm/w |
||||||
|
5050 (le {10- i {-1 lionsa) |
200LM/W |
||||||
|
3030 (le {16- i {-1 lionsa) |
140lm/w |
||||||
|
3030 (le {24- i {-1 lionsa) |
160lm/w |
||||||
|
Tiománaí faoi stiúir |
Meanwell/Moso/sosen/aireagáin |
||||||
|
Fachtóir Cumhachta (PF) |
>0.95 |
||||||
|
Saobhadh armónach iomlán (THD) |
Níos lú ná nó cothrom le 15% |
||||||
|
Raon oibriúcháin teochta |
Céim {-40 -50 Céim |
||||||
|
Ráta IP / IK |
IP66/IK08 |
||||||
|
Baránta |
5 bliana |
||||||
|
Méid Carton (MM) |
513*199*163 |
582*225*164 |
626*265*164 |
700*285*164 |
785*325*164 |
785*325*164 |
|
|
Glanmheáchan (kg) |
2.67 |
3.12 |
4.28 |
4.56 |
6.36 |
6.36 |
|
|
Ollmheáchan (kg) |
3.1 |
3.7 |
4.9 |
5.3 |
7.2 |
7.2 |
|
Dáileadh solais:
Roghanna lionsa molta. Roghanna éagsúla lionsa atá ar fáil d'iarratais éagsúla, a cheadaíonn réitigh saincheaptha.
T2S T2M T3M
Clibeanna Te: Lampa faoi stiúir ard -déine, soláthraithe lampa faoi stiúir ard -déine na Síne
